Layout Design (2D, 3D models)

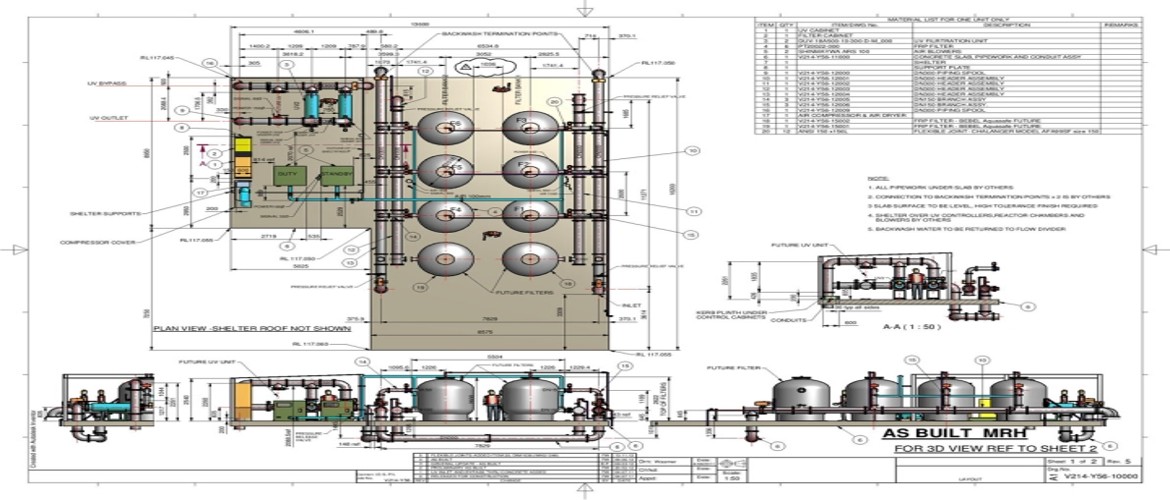

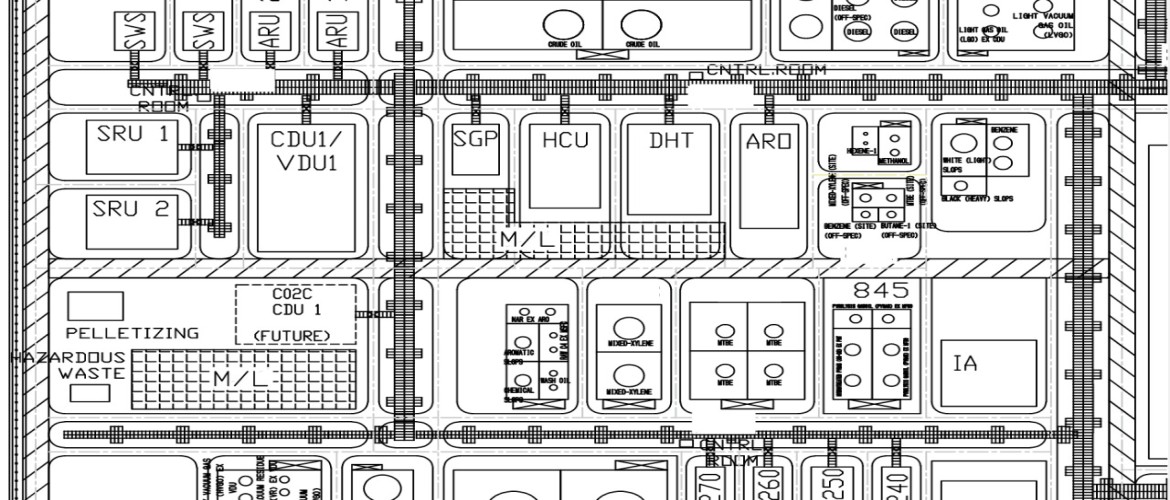

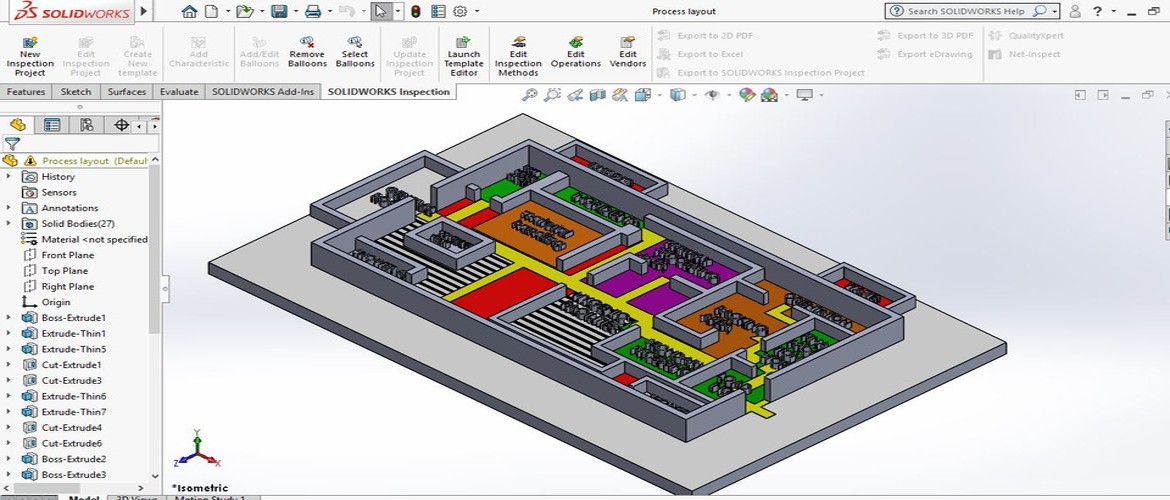

We provide detailed 2D and 3D design models of process plants, piping networks, and equipment. We specialize in making use of various tools such as AutoCAD Plant 3D, SolidWorks, and Catia. Plant layout design utilizes 2D and 3D techniques, each with unique advantages. Combining both methods creates comprehensive, effective designs.
Plant layout typically involves:
- Space Utilization
- Workflow Optimization
- Safety Considerations
- Ergonomics
- Future Expansion
- Space Utilization
- Communication and Accessibility
- Cost Optimization
What we offer?
- We aid EPCs, plant owners, suppliers, and consultants to speed up projects and overcome design challenges.
- We prioritize project delivery efficiency, minimizing design-related setbacks.
- We strive to accelerate project implementation with minimal risk, ensuring optimal outcomes for stakeholders.
Why Us?
- Extensive expertise crafting tailored digital design data for intricate plant design needs, honed over many years.
- Expertise in piping, process, structural, and mechanical engineering enables meticulous plant layout design, ensuring seamless integration and efficient functionality.
- Tailored plant design meets client needs, optimizing performance, enhancing safety, and providing cost-effective solutions.
